Compactors
New
2020 Wacker Neuson DPU110LEM970
In Stock
Call for pricing
Description
The DPU110 offers uncompromising power and performance needed for tough compaction jobs. Designed for the compaction of granular and mixed soils, the DPU110 offers over 24,000 pounds of centrifugal force, fast forward travel speed and a rugged design to complete the most challenging compaction jobs. Besides outstanding performance, this reversible plate is designed for optimum serviceability, making routine maintenance quick and easy.
Features
- Outstanding maneuverability and comfort including low hand-arm vibration to enhance productivity
- Guide handle is height adjustable for various size operators, locks into place and can be quickly release via a foot control
- Intelligent water-cooled engine designed for ambient temperatures up to 122 °F (50 °C)
- Quick and easy to transport with central lifting eye and tie downs
- Available with either machine protection sensor that detects machine overload or Compatec, compaction detection system with overload protection
- First-class compaction performance
- Individually controllable compaction performance, optimized adaptation to the soil being compacted
- Water-cooled engine, optimized for the plate’s requirements
- Stable base plate: very good rate of advance for fast compaction and optimum results
- High operating comfort
- No documentation requirements due to hand-arm vibrations below 2.5 m/s²

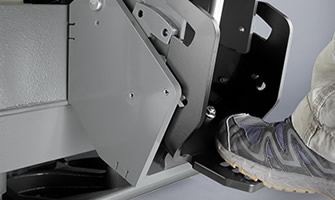

- Very user-friendly: quick lowering and reset of the guide handle via foot pedal
- Easy change of direction by turning the stirrup handle
- Intuitive controls, no training necessary
- All controls are recessed in the guide handle head, protected from damage
- Ecological & sustainable
- The water-cooled engine meets all emission regulations future-proof and allows operation at extreme temperatures
- Water-cooling provides extremely long engine service life even with long-term operations
- Quiet operation, below noise exposure limits - that protects the environment and operator
- Extremely robust design
- The steel tube frame and steel cover sheets make the DPU110 very robust and protected against damage
- The side panels are detachable
- Durable and very stable design
- Safety

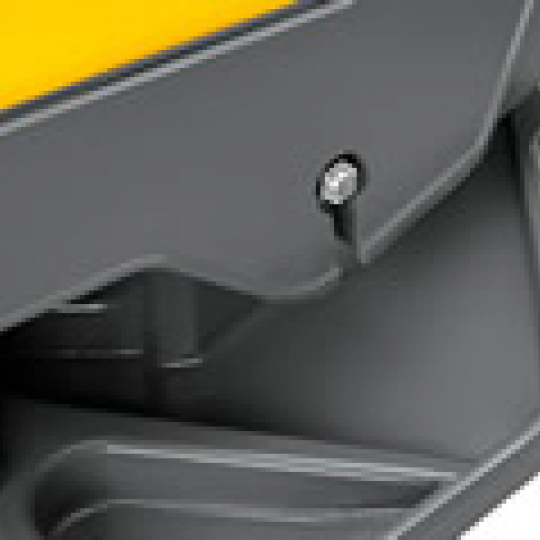

- Tie-down options similar to those of large equipment allow an optimal securing during transport
- The lifting eye is turned by 90 degrees and thus provides better protection of hood and center pole when being lifted.
- Guide handle and control elements cannot collide with the excavator arm when being transported.
- Operator safety: If the operator releases the guide handle the vibratory plate continuous vibrating but remains in place (on-the-spot vibration)
- Maintenance and Service

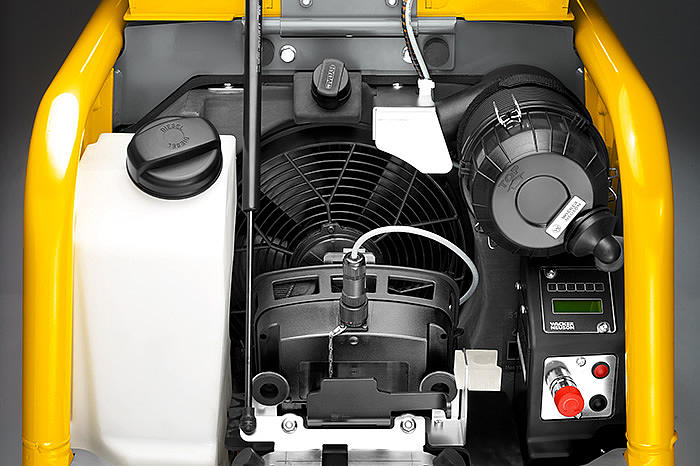

- 100% service access with a few easy steps
- Detachable side panels
- Hood can be fully opened
- Long service intervals due to large air filter
- Easy to clean base design without the risk of damaging hydraulic hoses
- Intelligent equipment protection
- Black box allows communication between man and machine
- Operating displays provide information on overload protection and error logs
- Individual configurations possible
- Theft protection via PIN set
- Optionally available with machine overload protection or compaction control Compatec incl. machine overload protection.
- Reversible Vibratory Plate, with water-cooled Kohler diesel engine, e-starter, machine overload protection, operating width 38 inches (970 mm)
- Reversible Vibratory Plate, with water-cooled Kohler diesel engine, e-starter, Compatec incl. machine overload protection, operating width 38 inches (970 mm)
Specifications
Engine
| Engine / Motor Manufacturer | Kohler |
| Engine / Motor Type | Water-cooled 3-cylinder 4-stroke diesel engine |
| at rpm | 2,700 rpm |
| Displacement | 1,028 cm³ |
| Fuel tank capacity | 11.2 l |
| Engine / Motor | KDW1003 |
| Fuel consumption | 3.3 l/h |
| Power transmission | Hydrostatic |
| Permissible tilt | 25 ° |
| Engine performance (rated power) (DIN ISO 3046 IFN) | 16 kW |
| Operating performance (DIN ISO 3046 IFN) | 12 kW |
| fuelType | Diesel |
Operational
| Frequency | 60 Hz |
| Centrifugal force | 110 kN |
| Hand-arm vibrations | < 2.5 m/s² |
| Advance travel max. (dependent on soil and environmental influences) | 30 m/min |
| Surface capacity max. (dependent on soil and environmental influences) | 1,746 m²/h |
Dimensions
| Transport length | 1,515 mm |
| Base plate thickness | 14 mm |
| Operating width | 970 mm |
| Transport height | 1,670 mm |
| Transport width | 1,050 mm |
| Base plate length | 1,183 mm |
| Base plate width | 970 mm |
| Height (ground clearance) | 830 mm |
Weights
| Operating weight | 830 kg |
| Shipping Weight | 853 kg |
