Compactors
New

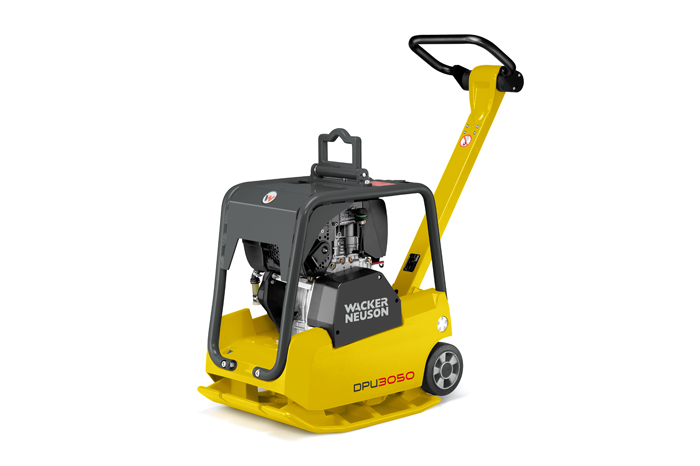

2020 Wacker Neuson DPU3050H
In Stock
Call for pricing
Description
These reversible plates are ideal for the compaction of interlocking paving stones, trenches, landscape and municipal applications. They come with a unique, integrated wheel set that provides easy one-person movement around the job or shop.
Features
- Single lever direction control provides for easy forward and reverse operation.
- Adjustable guide handle can be locked into a vertical position for easy transportation and storage.
- Easy access throttle control simplifies operation and reduces operator fatigue.
- Heavy duty frame features an integral central lifting point for easy on/off loading and placement of plate into trenches.
- Specially designed shockmount system offers virtually vibration-free guide handle for operator comfort and increased productivity.
Specifications
Engine
| Engine / Motor Manufacturer | Hatz |
| Engine / Motor Type | Air-Cooled, Single Cylinder 4-cycle engine |
| Displacement in³ | 16.47 |
| Engine / Motor | 1B30 |
| Displacement cm³ | 270 |
| At Engine RPM rpm | 3,600 |
| Fuel type | Diesel |
| Tank capacity Fuel l | 5 |
| Fuel consumption l/h | 0.6 |
| Tank capacity Fuel US qt | 5.3 qt |
| Operating performance (DIN ISO 3046) hp | 6.8 hp |
| Operating performance (DIN ISO 3046) kW | 5 |
Operational
| Frequency Hz | 90 |
| Fuel consumption US gal/h | 0.15 gal/h |
| Centrifugal force kN | 30 |
| Centrifugal force lbf | 6,744 lbf |
| Advance travel (depending on soil & environmental factors) ft/min | 68.9 |
| Advance travel (depending on soil & environmental factors) m/min | 21 |
| Base plate thickness in | 0.4 in |
| Base plate thickness mm | 10 |
| Gradeability (depending on soil & environmental factors) % | 30 |
| Operating height Adjustable guide handle - Down mm | 800 |
| Operating height Adjustable guide handle - Up mm | 1,143 |
| Surface capacity (depending on soil & environmental factors) ft²/h | 6,781 |
| Surface capacity (depending on soil & environmental factors) m²/h | 630 |
Dimensions
| Operating weight kg | 175 |
| Operating weight lb | 386 |
| Operating width mm | 500 |
| Operating width in | 19.7 |
| Height (without guide handle) in | 29.8 |
| Height (without guide handle) mm | 758 |
| Operating height Adjustable guide handle - Down in | 31.5 |
| Operating height Adjustable guide handle - Up in | 45 |
Drivetrain
| Power transmission | From drive motor via centrifugal clutch and V-belt direct to exciter. |
