2020 Wacker Neuson DPU6555Heh
In Stock
Call for pricing
Description
Thanks to its enormous compaction force combined with a quick forward and return travel, the DPU 6555 offers an extremely high level of productivity. It is a very versatile machine for all construction sites where extreme demands are placed on the performance efficiency. In addition, it offers excellent characteristics in terms of service life and operating comfort. Optimal application areas are the compaction of frost coverings and bearing layers in street, path and parking lot construction as well as backfilling buildings. Thanks to a frequency of 69 Hz, the DPU 6555 is universally applicable and even reliably compacts heavy interlocking paving stones. The model version DPU 6555Hec is equipped with Compatec, the compaction control by Wacker Neuson. This is also available as a retrofit kit for all DPU 6555He models starting with the year 2011.
Features

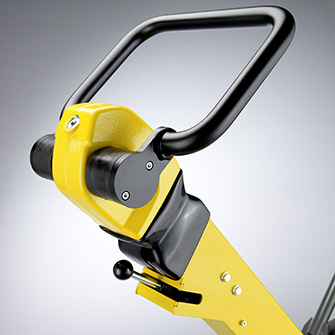

- The innovative guide handle provides for very low hand-arm vibrations and optimizes the user-friendliness.
- An operator present system prevents the operator from being trapped between the unit and an object when working backward.
- Extensive comfort functions, such as low oil shutdown, self-adjusting V-belts, maintenance-free alternator.
- A large dimensioned diesel engine offers high power reserves and ensures for a high level of efficiency and long service life.
- Compatec: Easy to read display of the relative compaction progress. Warning for overload and overcompaction. Brightness adjustment of the lights to the ambient light. Extremely robust and reliable.
Specifications
Engine
| Engine / Motor Manufacturer | Hatz |
| Engine / Motor Type | Air-cooled, single-cylinder, four-cycle diesel engine |
| Displacement in³ | 40.7 |
| Engine / Motor | 1D81S |
| Displacement cm³ | 667 |
| At Rpm rpm | 3,010 rpm |
| At Engine RPM rpm | 3,010 |
| Fuel type | Diesel |
| Tank capacity (Fuel) l | 6 |
| Tank capacity (fuel) US qt | 6.3 qt |
| Fuel consumption l/h | 1.9 |
| Operating performance (DIN ISO 3046) kW | 6.8 kW |
| Engine performance (rated power) (IFN DIN ISO 3046) kW | 9.6 kW |
Operational
| Frequency Hz | 69 |
| Fuel consumption US gal/h | 0.5 gal/h |
| Centrifugal force kN | 65 |
| Centrifugal force lbf | 14,612 lbf |
| Base plate thickness in | 0.47 in |
| Base plate thickness mm | 12 |
| Hand-arm vibrations ft/s² | 4.3 |
| Hand-arm vibrations m/s² | 1.3 |
| Advance travel max. (dependent on soil and environmental influences) ft/min | 91.8 ft/min |
| Advance travel max. (dependent on soil and environmental influences) m/min | 28 |
| Base plate size W x L in | W x L: 21.7 x 35 in |
| Base plate size W x L in | 21.7 x 35 |
| Surface capacity max. (dependent on soil and environmental influences) ft²/h | 12,917 |
| Surface capacity max. (dependent on soil and environmental influences) m²/h | 1,200 |
Dimensions
| Operating weight kg | 495 |
| Operating weight lb | 1,091 |
| Shipping weight kg | 501 |
| Shipping weight lb | 1,105 |
| Operating width (with extension plates) in | 28 |
| Operating width (with extension plates) mm | 710 |
| Transport height in | 59.9 |
| Transport height mm | 1,521 |
| Transport length in | 41.7 |
| Transport length mm | 1,060 |
| Transport width in | 30.7 |
| Transport width mm | 780 |
| Base plate size W x L mm | 550 x 900 |
| Height (ground clearance) in | 33.6 |
| Height (ground clearance) mm | 861 |
Drivetrain
| Power transmission | From the drive motor via centrifugal clutch and V-belt directly to the exciter. |
