Compactors
New
2020 Wacker Neuson DPU90
In Stock
Call for pricing
Description
The DPU90 offers the power and performance needed for the toughest compaction jobs. Designed for compaction of granular and mixed soils, the DPU90 offers over 20,000 pounds of centrifugal force, fast forward travel speed, high frequency rate and a rugged design to meet the needs of a variety of compaction jobs. Besides outstanding performance, this reversible plate is designed for optimum serviceability making routine maintenance quick and easy.
Features
- Outstanding maneuverability and comfort including low hand-arm vibration to enhance productivity
- Guide handle is height adjustable for various size operators, locks into place and quickly released via a foot control

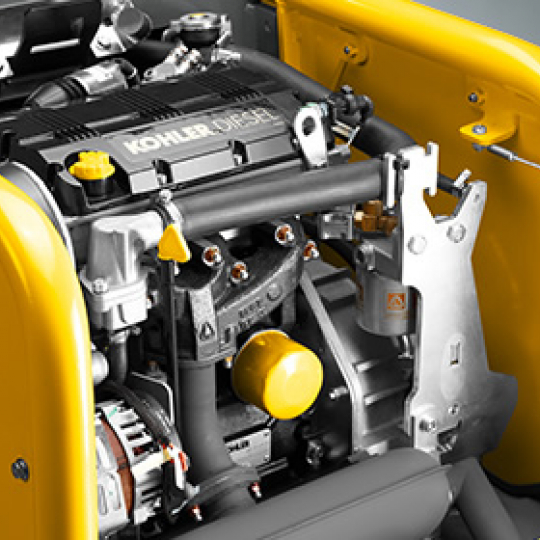

- Intelligent water-cooled engine designed for ambient temperatures up to 122 °F

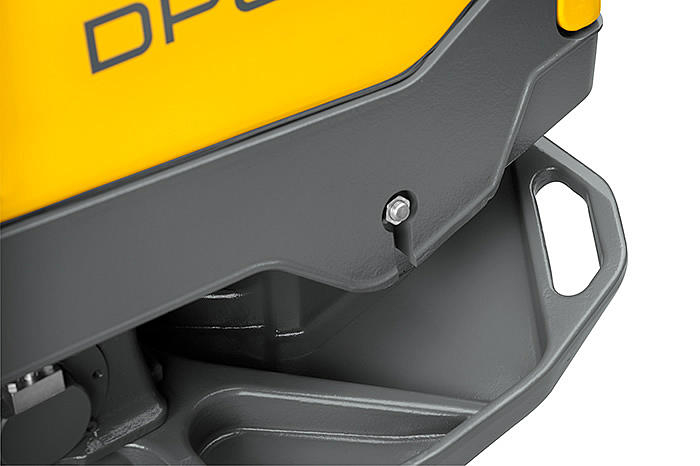

- Quick and easy to transport with central lifting eye and tie downs.
- Available with either machine protection sensor that detects machine overload, or Compatec, compaction detection system with overload protection
Specifications
Engine
| Engine / Motor Manufacturer | Kohler |
| Engine / Motor Type | Water-cooled 2-cylinder 4-stroke diesel engine |
| at rpm | 3,350 rpm |
| Displacement | 42 in³ |
| Fuel tank capacity | 1.9 US gal |
| Engine / Motor | KDW702-3350 US |
| Fuel type | Diesel |
| Engine performance (rated power) (DIN ISO 3046 IFN) | 14.3 hp |
| Operating performance (DIN ISO 3046 IFN) | 13.1 hp |
Operational
| Gradeability | 34 % |
| Fuel consumption | 0.7 US gal/h |
| Frequency | 63 Hz |
| Base plate thickness | 0.6 in |
| Centrifugal force | 20,233 lbf |
| Hand-arm vibrations | < 8.2 ft/s² |
| Advance travel max. (dependent on soil and environmental influences) | 98 ft/min |
| Base plate length | 47 in |
| Base plate width | 30 in |
| Permissible tilt | 25 ° |
| Surface capacity max. (dependent on soil and environmental influences) | 14,919 ft²/h depends on soil and environmental factors |
Dimensions
| Operating weight | 1,700 lb |
| Transport length | 59 in |
| Shipping Weight | 1,711 lb |
| Operating width | 30 in |
| Transport height | 65 in |
| Transport width | 33 in |
| Height (ground clearance) | 33 in |
Drivetrain
| Power transmission | Hydrostatic |
