2020 Wacker Neuson RD24-100
In Stock
Call for pricing
Description
The RD24 articulated ride-on rollers offer a large drum diameter combined with a low machine center of gravity to ensure excellent compaction quality. The unique drum offset allows for easy maneuvering when compacting along walls and provides for a smoother finish. The ergonomic operator platform is isolated to reduce vibration, provides plenty of legroom and offers an adjustable seat the moves forward as well as side to side for greater comfort.
Features
- Three point articulated pendulum joint offers constant contact for better results, safety and a smoother ride
- Dual drum vibration with high and low setting
- Tapered design provides full view of the drum edges, the machine and job site
- Three model version available: Tandem-axle roller with two vibrating drums; combination roller with vibrating front drum with pneumatic rear tires; vibrating front drum with oscillating rear drum
- Convenient maintenance and servicing access
- With the completely vibration-insulated driver's cabin, operating the roller is extremely comfortable. The large amount of legroom and the seat that moves forward as well as laterally to the left and right also ensure for a pleasant working situation.

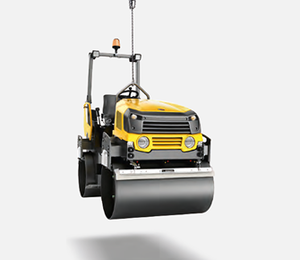

- The central lifting point that is practically placed in the center ensures easy lifting and quick transport of the roller.
- Driving lights, turn signal lights, CE-conformity
- Rotating beacon
- Multi-functional control level on both sides
- Back-up alarm
- Adjustable Scraper Bars
- Central lifting point
- 3 point articulated joint
- 2-inch drum offset capability
- Automatic/manual vibration system
- 3 braking systems with emergency stop
- Pressurized water system and hand serviceable plastic spray nozzles
- Foldable ROPS - both direction
- Comfort seat, safety belt, adjustable forward, backward & laterally
- Water-cooled T4F Kubota diesel engine, model 1503
- Hydrostatic drive front/rear - independent drives
Specifications
Engine
| Engine / Motor Manufacturer | Kubota D1703 |
| Engine / Motor Type | 3-cylinder diesel engine |
| Tank capacity Fuel US gal | 11.1 gal |
| Tank capacity Fuel l | 42 |
| Operating performance ISO 14396 hp | 24.8 hp |
| Operating performance ISO 14396 kW | 18.5 |
Operational
| Drum diameter in | 28.4 in |
| Drum diameter mm | 720 |
| Drum width in | 39.4 in |
| Drum width mm | 1,000 |
| Gradeability with vibration % | 30 |
| Gradeability without vibration % | 40 |
| Tank capacity water l | 180 |
| Tank capacity water US gal | 47.6 gal |
| Amplitude in | 0.02 in |
| Amplitude mm | 0.54 |
| Axle load front kg | 1,205 |
| Axle load front lb | 2,657 |
| Axle load rear kg | 1,270 |
| Axle load rear lb | 2,800 |
| Centrifugal force front Level II kN | 28 |
| Centrifugal force front Level I kN | 46 |
| Centrifugal force front Level I lbf | 10,340 |
| Centrifugal force front Level II lbf | 6,295 |
| Centrifugal force rear Level II kN | 28 |
| Centrifugal force rear Level II lbf | 6,295 |
| Centrifugal force rear Level I kN | 46 |
| Centrifugal force rear Level I lbf | 10,340 |
| Drum type front | smooth / undivided |
| Drum type rear | smooth / undivided |
| Frequency Level I Hz | 67 |
| Frequency Level II Hz | 52 |
| Frequency Level I Vpm | 4,020 Vpm |
| Frequency Level II Vpm | 3,120 Vpm |
| Linear force - front / rear static lb/in | 69.1 / 72.5 |
| Linear force - front / rear static N/mm | 12.1 / 12.7 |
| Linear force static (front) lb/in | Front: 69.1 lb/in |
| Linear force static (rear) lb/in | 72.52 lb/in |
| Turning radius inside mm | 2,470 |
| Advance travel (max) ft/min | 656 ft per min |
| Advance travel (max) m/min | 200 |
Dimensions
| L x W x H mm | 2,460 x 1,110 x 2,390 |
| L x W x H in | 96.9 x 43.7 x 94.1 |
| Operating width mm | 1,050 |
| Operating width in | 41.4 |
| Ground clearance middle in | 11 |
| Ground clearance middle mm | 280 |
| Operating weight max. kg | 3,190 |
| Operating weight max. lb | 7,033 |
| Turning radius inside in | 97.3 |
| Curb clearance in | 22.5 |
| Curb clearance mm | 570 |
| Operating weight with ROPS kg | 2,475 |
| Operating weight with ROPS lb | 5,456 |
