Compactors
New
2020 Wacker Neuson RD45-140
In Stock
Call for pricing
Description
The RD45 articulated tandem axle rollers offer high centrifugal forces to provide full compaction and quality results. Configurations for these versatile rollers include traditional dual vibrating drums, tandem roller with an oscillating drum or as a combination version. All models feature an ergonomic operator\u2019s platform with reduced vibration and articulated joint to provide for maximum driving comfort. The tapered design provides an excellent view of the drums and work site.
Features
- Drum offset allows for easy maneuvering when compacting along walls and provides a smooth finish
- Three point articulated pendulum joint offers constant contact for better results, safety and a smoother ride
- Large fuel and water tanks allow for extended operation time. Central drainage allows water to be drained in one simple step
- Vibration and oscillation can be adjusted in two levels

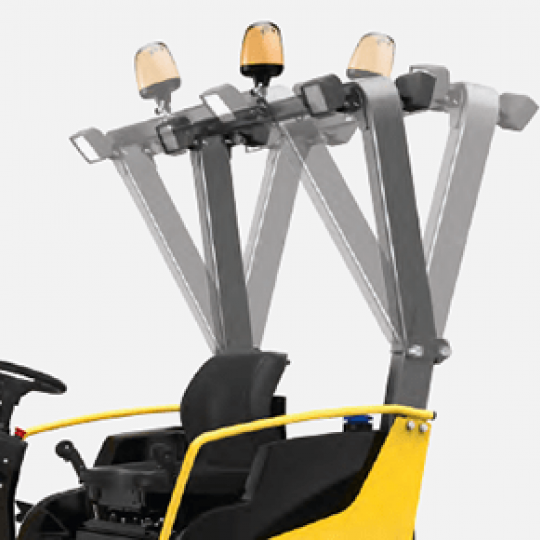

- ROPS (Roll Over Protective Structure) can be folded back for transport
- With the completely vibration-insulated driver's cabin, operating the roller is extremely comfortable. The large amount of legroom and the seat that moves forward as well as laterally to the left and right also ensure for a pleasant working situation.
Specifications
Engine
| Engine / Motor Manufacturer | Kubota V2403-CR |
| Engine / Motor Type | 3-cylinder diesel engine |
| Tank capacity Fuel US gal | 19.3 gal |
| Tank capacity Fuel l | 73 |
| Operating performance ISO 14396 hp | 49.3 hp |
| Operating performance ISO 14396 kW | 36.8 |
Operational
| Drum diameter in | 35.5 in |
| Drum diameter mm | 900 |
| Drum width in | 54.4 in |
| Drum width mm | 1,380 |
| Gradeability with vibration % | 30 |
| Gradeability without vibration % | 40 |
| Tank capacity water l | 285 |
| Tank capacity water US gal | 75.3 gal |
| Axle load front kg | 2,175 |
| Axle load front lb | 4,795 lb |
| Axle load rear kg | 2,170 |
| Axle load rear lb | 4,784 lb |
| Centrifugal force front Level II kN | 39 |
| Centrifugal force front Level I kN | 64 |
| Centrifugal force front Level I lbf | 14,390 |
| Centrifugal force front Level II lbf | 8,768 |
| Centrifugal force rear Level II kN | 39 |
| Centrifugal force rear Level II lbf | 8,768 |
| Centrifugal force rear Level I kN | 64 |
| Centrifugal force rear Level I lbf | 14,390 |
| Drum type front | smooth / undivided |
| Drum type rear | smooth / undivided |
| Frequency Level I Hz | 60 |
| Frequency Level II Hz | 51 |
| Frequency Level I Vpm | 3,600 Vpm |
| Frequency Level II Vpm | 3,060 Vpm |
| Linear force static (front) lb/in | Front: 90.22 lb/in |
| Linear force static (rear) lb/in | 89.65 lb/in |
| Turning radius inside mm | 2,650 |
| Advance travel max. ft/min | 600.24 ft per min |
| Advance travel max. m/min | 183 |
| Linear force - front / rear static lb/in | 90.22 / 89.65 |
| Linear force - front / rear static N/mm | 15.8 / 15.7 |
| Amplitude level II mm | 0.31 |
| Amplitude level I mm | 0.51 |
| Amplitude Level I in | 0.02 in |
| Amplitude Level II in | 0.01 in |
Dimensions
| L x W x H mm | 2,860 x 1,506 x 2,590 |
| L x W x H in | 112.6 x 59.9 x 102 |
| Operating width mm | 1,430 |
| Operating width in | 56.3 |
| Ground clearance middle in | 12 |
| Ground clearance middle mm | 305 |
| Operating weight max. kg | 5,300 |
| Operating weight max. lb | 11,684 |
| Turning radius inside in | 104.3 |
| Curb clearance in | 28.4 |
| Curb clearance mm | 720 |
| Operating weight with ROPS kg | 4,345 |
| Operating weight with ROPS lb | 9,579 |
