Compactors
New
2020 Wacker Neuson WP1550A
In Stock
Call for pricing
Description

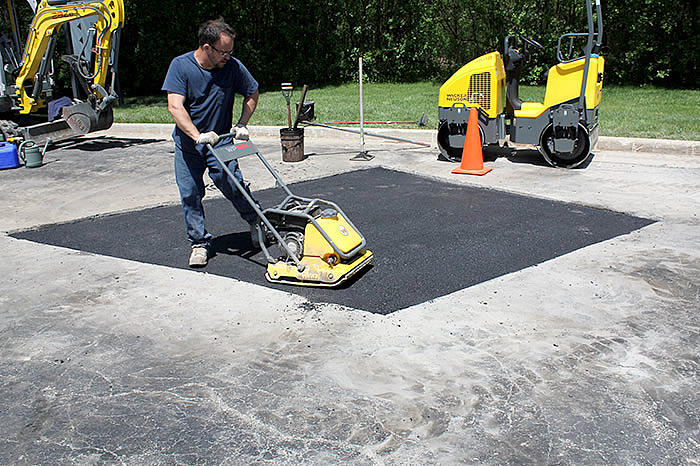

The WP premium plate series feature a computer designed base plate that has a tapered bottom and edges for high speed and excellent maneuverability. Designed for the compaction of granular, mixed materials with some cohesive content. Water tank models are available for asphalt applications. These plates have set the standard for performance and durability in confined areas such as parking lots, highway and bridge construction, next to structures, curbs and abutments. WP plates are also popular for landscape applications for subbase and paver compaction.
Features
- Lightweight, high-strength components keep machine weight down and allow for easy handling.
- Straight, center-mounted guide handle offers superior maneuverability and can be lowered within inches of the surface to operate the plate under obstacles and form work.
- Tough, wear resistant ductile iron base plate offers durability and shock resistance.
- Water tank models have a large capacity polyethylene tank that includes a large filter inside the tank to prevent clogging during operation and can be easily removed for cleaning and draining.
- Asphalt models include a spray bar with angled holes to allow for complete water coverage for no asphalt pick up on the plate bottom.
Specifications
Engine
| Engine / Motor Manufacturer | Honda |
| Engine / Motor Type | air-cooled, 4 cycle, single cylinder, gasoline engine |
| Engine performance kW | 3.1 |
| Displacement in³ | 9.9 |
| Engine performance hp | 4.15 |
| Fuel tank capacity US gal | 0.95 |
| Displacement cm³ | 163 |
| Fuel tank capacity l | 3.6 |
| At Engine RPM rpm | 3,600 |
| Fuel consumption US gal/h | 0.21 |
| Fuel consumption l/h | 0.8 |
Operational
| Frequency Hz | 98 |
| Centrifugal force kN | 15 |
| Advance travel m/min | 25 |
| Base plate size (w x l) mm | 500 x 578 |
| Advance travel ft/min | 82 |
| Base plate size (w x l) in | 19.6 x 22.8 |
| Centrifugal force lbf | 3,375 |
| Surface capacity ft²/h | 8,073 |
| Surface capacity m²/h | 750 |
Dimensions
| Operating weight kg | 89 |
| Operating weight lb | 196.2 |
| Operating width mm | 500 |
| Operating width in | 19.6 |
| Height Lowest working in | 20.7 |
| Height Lowest working mm | 525 |
| Operating height in | 38 |
| Operating height mm | 965 |
Drivetrain
| Power transmission | Power transmission from engine via centrifugal clutch and V-belt onto exciter which transmits centrifugal force onto baseplate. |
