Generators
New

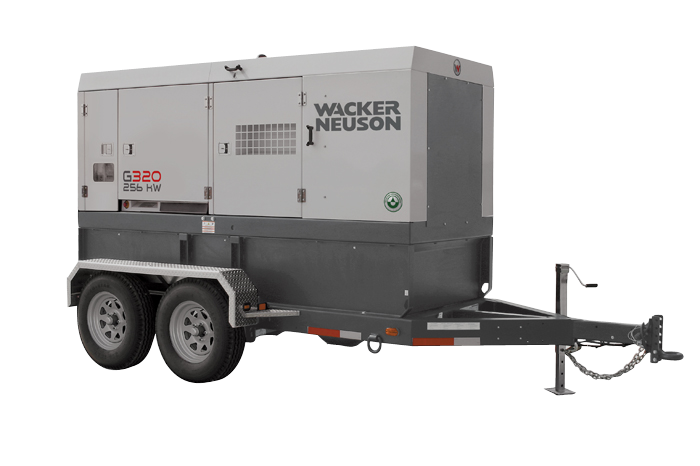

2020 Wacker Neuson G320 T4F
In Stock
Call for pricing
Description
Utilizing the latest Cummins diesel emission technology engine, this durable, sound attenuated generator provides mobile, prime power for larger applications requiring quiet dedicated power. It is especially suited for areas requiring BAT (Best Available Technology) to meet the most stringent EPA CARB air standards. Digital controller monitors and protects the generator and the engine while providing continuous operating data on an easy to read LCD display.
Features
- Many "green"features complement ultra-clean engines including 115% fluid containment, crankcase oil vapor recovery system, "no mess"oil and radiator drain hoses/valves and fast fuel system.
- Brushless, oversized alternators with separate excitation winding and AVR (Automatic Voltage Regulation) provide superior motor starting and an enhanced ability to run non-linear loads.
- Designed for easy operation and long run time with standard features that include an engine block heater, low coolant shutdown, low idle switch, 24-volt engine operating voltage and three sets of cam locks.
- This unit is ideal for applications needing dedicated power including large general rental, oil and gas, mining, plant shutdown and large events.
Specifications
Engine
| Engine / Motor Manufacturer | Cummins |
| Displacement in³ | 543.1 |
| Engine / Motor | Liquid-cooled, 6 Cylinder |
| At Rpm rpm | 1,800 |
| Tank capacity Fuel US gal | 404.3 gal |
| Tank capacity Fuel l | 1,530 |
| Fuel consumption (Prime Load) US gal/h | 19.1 gal/h |
| Operating performance ISO 3046 hp | 433 hp |
| Engine oil Capacity l | 30 |
| Engine oil Capacity US qt | 31.7 qt |
Operational
| Frequency Hz | 60 |
| Generator insulation (class) | H |
| Generator model | Mecc Alte, Brushless w/AVR |
| Fuel type | #1/#2 ULSD |
| Voltage control Steady State % | 0.2 |
| Fuel consumption (Prime Load) l/h | 72.3 |
| Battery V | 24 V |
| Circuit breaker (Main) A | 1000 |
| Current 3 Phase (Prime) A | 769/384 |
| Emissions Certified | Tier 4F |
| Frequency (Generator Speed) Hz | 60 |
| Power factor 1 Phase cos Phi 1~ | 1 |
| Power factor 3 Phase cos Phi 3~ | 0.8 |
| Power factor 1 Phase cos phase 1 | 1 |
| Power factor 3 Phase cos phase 3 | 0.8 |
| Prime output kW | 256 |
| Quantity (Battery) | 4 |
| Runtime at 100% Prime Load h | 56 |
| Standby output kW | 269 |
| Trailer coupling Type | Pintle |
| Voltage 1 Phase V | 120, 127, 139, 240, 254, 277 |
| Voltage 3 Phase V | 208, 220, 240, 416, 440, 480 |
| DEF Type | AUS 32 |
| DEF Tank Capacity US gal | 37.4 gal |
| DEF Tank Capacity l | 142 |
| Operating performance ISO 3046 kW | 323 |
| Runtime at 25% Prime Load h | 63.4 |
| Runtime at 50% Prime Load h | 36.9 |
| Runtime at 75% Prime Load h | 25.7 |
| Coolant Capacity US qt | 62 qt |
| Coolant Capacity l | 59 |
| DEF Consumption at 100% Prime Load l/h | 2.41 |
| DEF Consumption at 100% Prime Load US gal/h | At 100%: 0.64 gal per h |
| Receptacles 20 Amp GFI Duplex | 2 |
| Receptacles 50 Amp Twist Lock | 3 |
| Sound level (LwA) (LwA) at Prime (23 ft / 7 m) dB(A) | 80.3 dB(A) |
| Voltage control No Load to Full Load % | 1 |
Measurements
| L x W x H Operating (Skid) in | 155 x 60 x 80 |
| L x W x H Operating (Skid) mm | 3926 x 1524 x 2032 |
| L x W x H Shipping/Operating (Trailer) in | 228 x 96 x 105 |
| L x W x H Shipping/Operating (Trailer) mm | 5791 x 2438 x 2667 |
| L x W x H Shipping (Skid) in | 162 x 68 x 92 |
| L x W x H Shipping (Skid) mm | 4115 x 1727 x 2337 |
| Weight Dry (Skid) kg | 4,286 |
| Weight Dry (Skid) lb | 9,450 |
| Weight Operating (Skid) kg | 5,783 |
| Weight Operating (Skid) lb | 12,750 |
| Weight Operating (Trailer) kg | 6,532 |
| Weight Operating (Trailer) lb | 14,400 |
| Weight Shipping (Skid) kg | 4,453 |
| Weight Shipping (Skid) lb | 9,817 |
| Weight Shipping (Trailer) kg | 5,035 |
| Weight Shipping (Trailer) lb | 11,100 |
